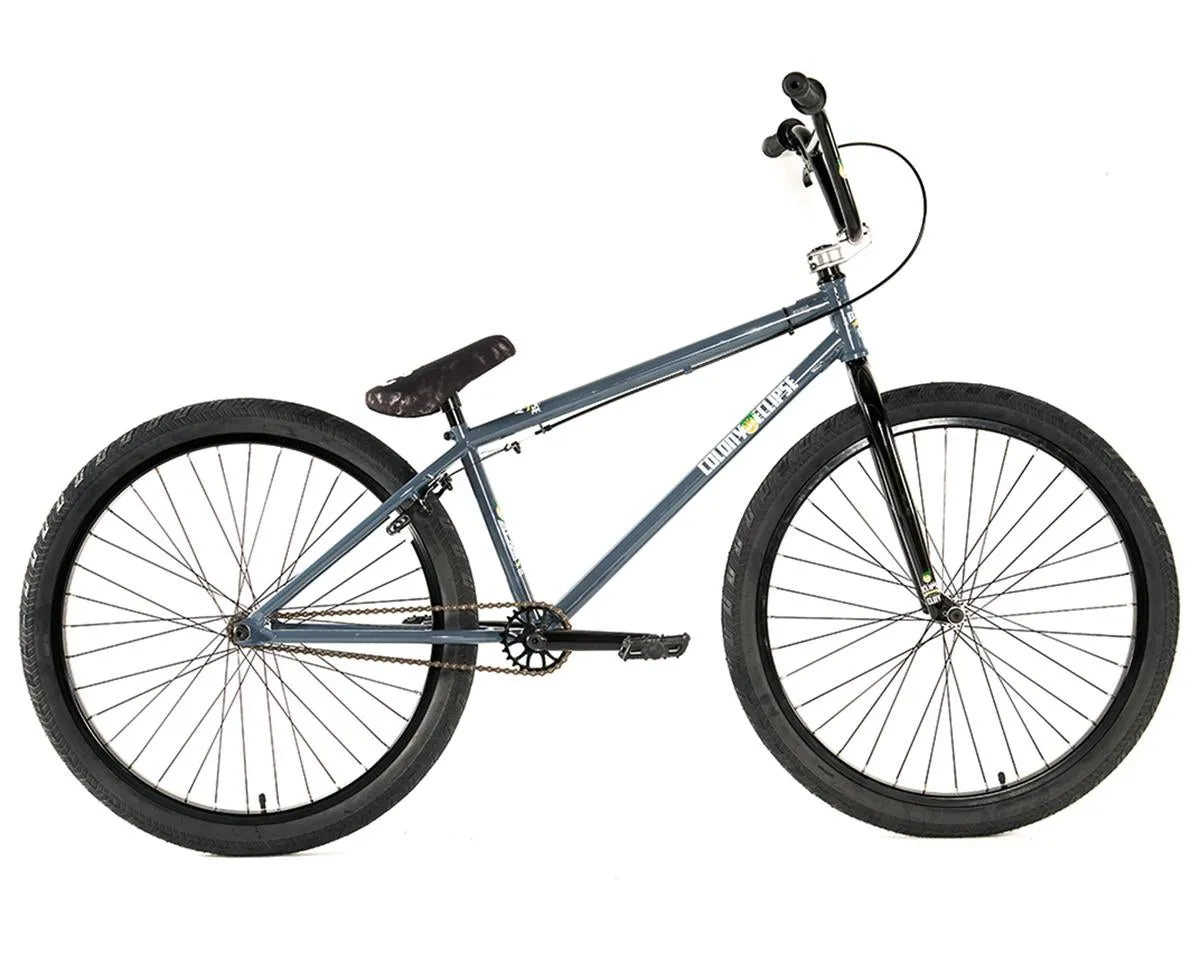

The Colony Eclipse 26” is built around a full chromoly frame, fork and bars with sealed bearings throughout, and a selection of aftermarket Colony parts. It is a great all-around cruiser for hitting up the local track, the skatepark or just riding around town with a little extra comfort.
Specifications:
- Frame: Full Chromoly (23" Toptube)
- Fork: Full Chromoly, Tapered Legs, 1-Piece CNC Steerer Tube
- Headset: Integrated (1-1/8")
- Stem: Colony Forged Top Load Alloy (50mm Reach)
- Bars: Colony, Full Chromoly (7.75" Height) (28" Wide)
- Grips: Colony Much Room

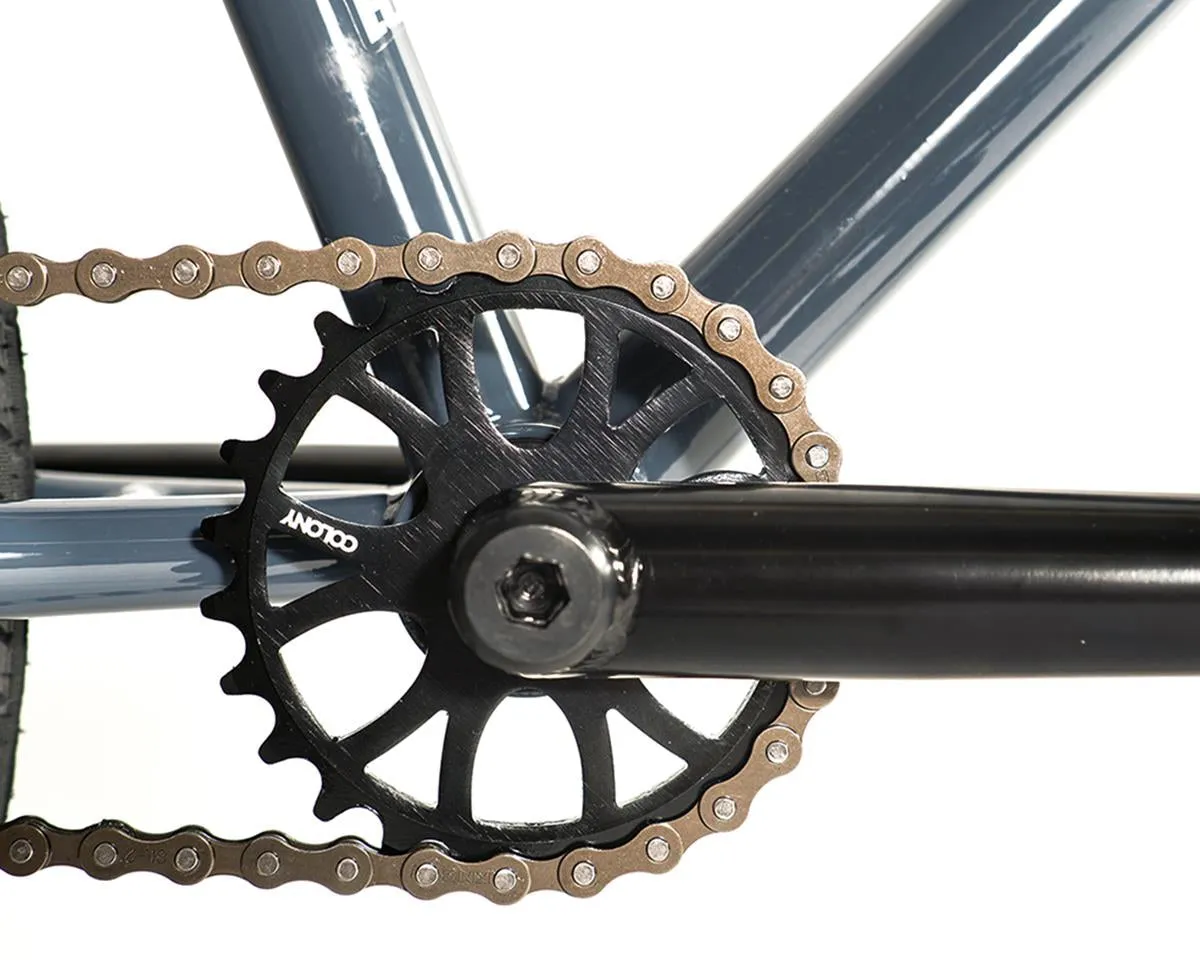

- Cranks: Colony Chromoly Tubular, 8 Tapered Spline (170mm Length)
- Bottom Bracket: Sealed Mid (19mm)
- Pedals: Colony Fantastic Plastic
- Sprocket: Colony Endeavour Alloy (25 Tooth)
- Chain: KMC
- Front Hub: Colony Alloy, Sealed Bearings, Female Axle (3/8" Axle)
- Rear Hub: Colony Alloy Cassette, Full Sealed Bearings (14mm Axle)
- Driver: 9 Tooth
- Front Rim: 6000 Series Alloy (Double Wall) (36 Hole)
- Rear Rim: 6000 Series Alloy (Double Wall) (36 Hole)
- Front Tire: (26" x 2.3")
- Rear Tire: (26" x 2.3")
- Seat: Colony 1-Piece (Combo)
- Seat Post: (Combo)
- Seat Clamp: Integrated
- Brake Lever: Alloy
- Brakes: Alloy 990 Style, Linear Slick Cable (Rear)
- Gyro Tabs: Drilled (Not Included)
- Weight: 26.9 lbs
Geometry:
- Toptube Length: 23"
- Chainstay Length: 16.5"
- Headtube Angle: 75.2°
- Seattube Angle: 71°
- Bottom Bracket Height: 12.25"
- Standover: 12" (Center of Bottom Bracket Shell to Center of Toptube)
- Recommended Sizing Guide: -
